HERON LITE COLOR - Kaasaskantav 3D kaardistamissüsteem

INDOOR/OUTDOOR

Wearable or handheld mobile laser scanner. Versatile and suitable for any environment.
Your unmatched SLAM-based solution!

AUTOMATIC

Turn on the system and start surveying. Just walk and leave the scanner working for you. Enjoy a professional system easy-to-use!

COMPLETE DATA

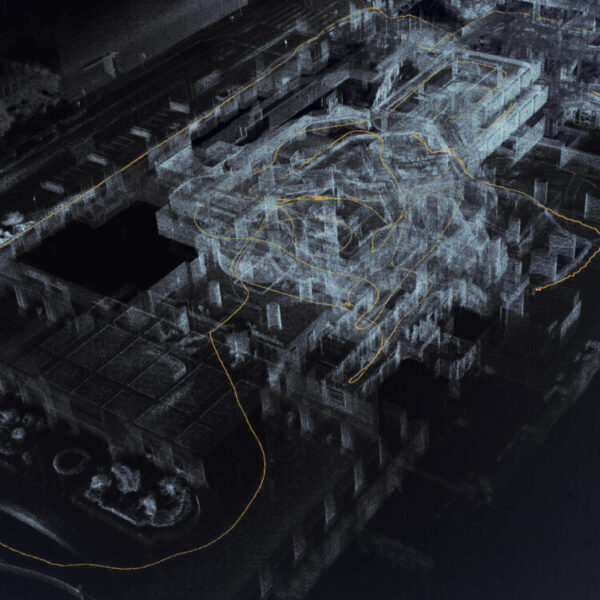

3D point clouds and 5k pano images to gather both geometry and color information at once. The scanner you can no longer give up!

ALL-IN-ONE

Full post-processing software included. Third-party compatibility provided. A forefront technology at your fingertips!

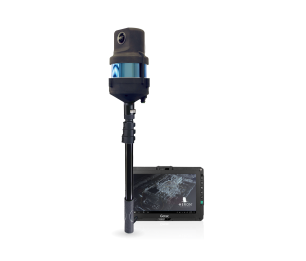

HERON® LITE Color

HERON LITE Color is a handheld 3D mapping system composed of a laser sensor for 3D geometry acquisition, and an RGB 5K panoramic camera for on-demand images collection. Perfect for indoor buildings acquisition, stockpiles volumetric computation, geospatial projects and digital twin approach. HERON LITE Color is provided with a complete software package to manage the entire data processing workflow.

Küsi pakkumist!

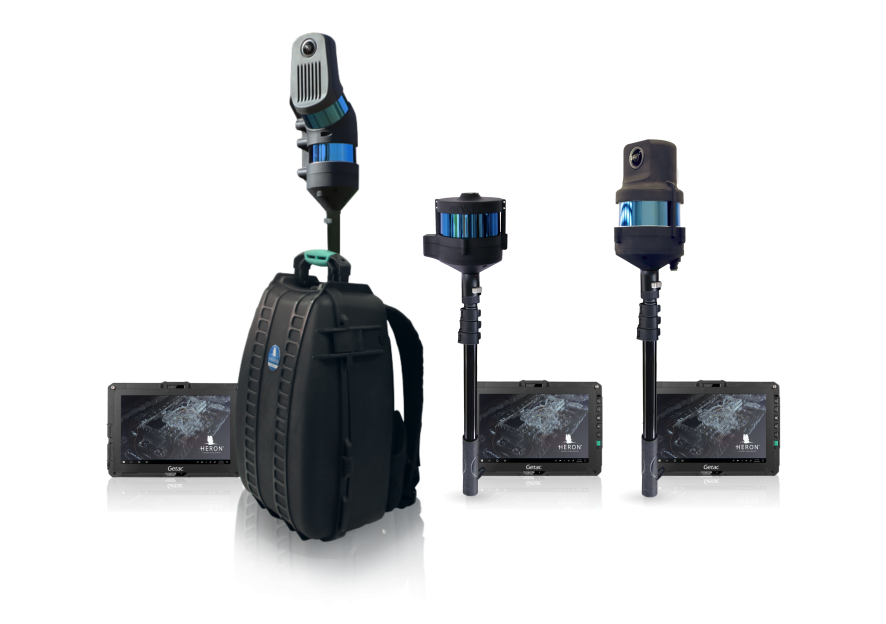

HERON – THE PROFESSIONAL 3D MOBILE MAPPING SYSTEM

Powerful SLAM-based scanner for fast 3D mobile mapping, ideal everywhere: indoors, outdoors, underground mines, geospatial applications, multi-level buildings, tunnels, cultural heritage sites, forensic procedures, forests, urban areas…but especially harsh and complex environments.

Some unique features:

Loop closure not mandatory
Initialization procedure not required
Usage in every light conditions
Automatic self-localization in a reference model, when available
Large reduction of drift effects typical of the SLAM process (patented algorithms)
Static scans used as constraints (patented algorithms)
Full post-processing software with third-party compatibility

USABILITY

RGB data acquisition: on-demand at 5K for very detailed images when requested.
Easy use of control points.
Loop closure and initialization procedure not required.
Hand-held design.
Capture head dockable also to a light rugged backpack or vehicles like cars, bikes, quads…
Rugged touch screen Control Unit that also provides:
– Annotations.
– Real-time view of the point cloud generation and the acquired panoramic images,
– Hands-free configuration.

DATA PROCESSING

Accurate 3D colorized models.
Automatic mapping of color data on 3D model.
Point cloud rendering with multiple color layers.
Direct export of images and 3D data to ReCap Pro.
Easy data export to third-party software (like 3DM Feature Extraction, EdgeWise, Micromine, Scene, Verity) and cloud platforms (e.g. 3DM Cloud, 3DUserNet, Cintoo Cloud, Scene Webshare) through the .e57 format.
Advanced point cloud rendering which emphasizes features and details.
3D models navigation tools.

APPLICATIONS

– Indoors
– Stockpiles
– Single Floor Acqusition
– Cadastral Survey
– BIM Models
– Forensic
– Real Estate Assets Management
– Cultural Heritage

– Geospatial
– Forests
– Digital Twin
– Urban Areas
– Outdoors (with geometry)
– Fast and sharable Plan Views
– Multi-sensor Projects

INCLUDED SOFTWARE
What you need to create and navigate 3D models and share results

HERON Desktop®
Post-processing SLAM software

To manage HERON raw data and automatically get accurate 3D point cloud models using a patented SLAM algorithm; split and merge survey trajectories and filter moving objects. Advanced mode to customize SLAM parameters. Use of GNSS coordinates for geolocalization.

Reconstructor®
Advanced 3D point cloud analysis software

Complete post-processing workflow for data from HERON or tripod/handheld/mobile sensors and UAV 3D point clouds. Powerful automatic target-less scans registration. Data export in several standard formats. Full compatibility with several third-party software and cloud platforms. Point cloud editing, color camera calibration, mesh and DM generation, volume/cut&fill volume calculations, cross-sections and profiles extraction.

GoBlueprint®
Free tool for 2.5D maps

A user-friendly viewer of X-ray 2.5D scaled images (obteined with Reconstructor), designed to quickly share models with final clients letting them easily measure distances, areas, volumes. It runs on any Windows-based tablet or pc.
